Aggregate Demand and Supply Model

Classical AD/AS Model

Contributors
Christian Bien Portrait_edited.jpg

Christian Bien



The classical AD/AS model is an expansion on the regular demand and supply model we all know and love.

What's are the Elements of a Classical AD/AS Model?
  • Price Level (inflation) is on the y axis

  • Real GDP (or economic activity) is shown on the x-axis

  • Includes an aggregate demand line represented by AD

  • Includes Short-Run Aggregate Supply Line - that is the current level of aggregate supply being achieved by the economy

  • Includes the Long Run Aggregate Supply Line - that is the highest level of aggregate supply that can be achieved with full employment of resources

Topic Menu
Keynesian AD/AS Model
Concept of Aggregate Demand and Supply
Factors Affecting Aggregate Demand
Factors Affecting Aggregate Supply
Classical AD/AS Model
Effects of Changes in Aggregated Demand
Effects of Changes in Aggregate Supply
Aggregate Demand and Supply Model / Business Cycle

Want your ATAR notes to empower over 77,000 students per year?


Join the Team.
Empower Education.

Contractionary Gap

Sign Up for Free to Read More

Get instant access to all content and subscribe to our weekly email list on study tips, opportunities and other free resources.

It only takes a minute...


A contractionary gap (shown above) is where the actual level of real GDP (Y1) is below the potential output at full employment (Yfe). This occurs where the equilibrium intersection between SRAS and AD is on the left-hand side of the LRAS line.


What is the Effect of a Contractionary Gap?

At a contractionary gap, increases in aggregate demand will cause little or no changes in the price level. This is because there is still spare capacity within the economy with the employment of additional resources not exceeding the maximum capacity of the economy.

Expansionary Gap (Also Called Inflationary Gap)

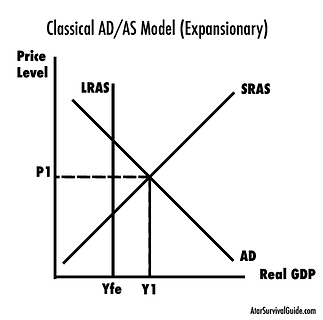

An expansionary gap (shown above) is where the actual level of real GDP (Y1) is above the potential output at full employment (Yfe). This occurs where the equilibrium intersection between SRAS and AD is on the right-hand side of the LRAS line.


What is the Effect of an Expansionary Gap?

At a contractionary gap, increases in aggregate demand will cause increases in price level and no change to real GDP. This is because the level of output is already at full employment of resources, so output cannot increase any further. Increasing aggregate demand will increase competition for resources, driving up prices for resources. For example, during the mining boom, there was a labour shortage for the mining industry, so the mining industry offered high wages to attract already employed labour. As labour was simply changing industries, real GDP changed slightly, while price levels rose from wage growth.

Why is LRAS a Straight Line?

Long-Run Aggregate Supply (LRAS) is represented as a straight line because, at this point, the economy is at full employment of resources. Increasing aggregate demand will not increase output as all resources are already employed. This will only result in inflation as there will be increased competition for resources, requiring firms to offer higher prices to accumulate scarce resources, such as labour.

This is shown in the above model.


The straight line of LRAS shows that increasing Aggregate Demand from AD1 to AD2 will only result in an increase in the price level from P1 to P2 and no increase in Real GDP which remains stationary at Yfe.
